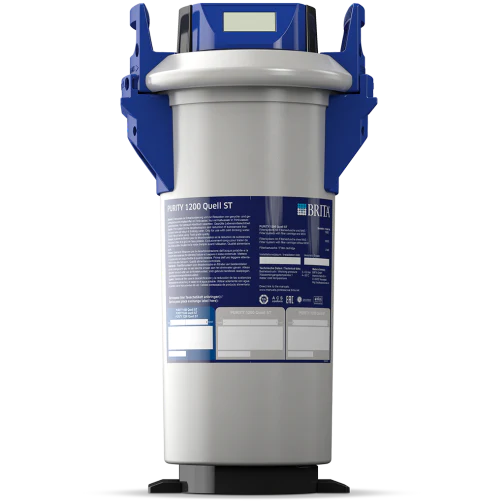

Brita Purity Aqua Quell Water Filter System

• Decarbonises water using proven BRITA System Filtration Technology
• Reduces taste and aroma-impairing elements – also in bypass water
• Allows coffee to develop its full aroma
• Machine armour: reduces limescale deposits
• Business-savvy choice: decreases service and repair costs
• Ideal for catering, vending, and food service

Technical Details for Purity Quell ST 450:

• Capacity Coffee/Espresso/Vending Machines (at a carbonate hardness of 10 °dH/bypass setting of 40 %): 4,217 L
• Comparable Capacity: 2,240 L
• Max. Operating Pressure: 6.9 bar
• Water Intake Temperature: 4 – 30 °C
• Flow at 1 bar pressure loss: max. 350 l / h
• Nominal flow: 60 l / h
• Pressure loss at nominal flow: max. 0.12 bar
• Dimensions (height / width): 408/249 mm
• Weight (dry / wet): 10/12 kg
• Connections (input/output): G 1“ | G 3/4“
• Operating position: horizontal and vertical
• Operation: Use after inhouse softening units possible

Technical Details for Purity Quell ST 600:

• Capacity Coffee/Espresso/Vending Machines (at a carbonate hardness of 10 °dH/bypass setting of 40 %): 7,207 L
• Comparable Capacity: 4,420 L
• Max. Operating Pressure: 6.9 bar
• Water Intake Temperature: 4 – 30 °C
• Flow at 1 bar pressure loss: max. 350 l / h
• Nominal flow: 60 l / h
• Pressure loss at nominal flow: max. 0.36 bar
• Dimensions (height / width): 520/249 mm
• Weight (dry / wet): 12/15 kg
• Connections (input/output): G 1“ | G 3/4“
• Operating position: horizontal and vertical
• Operation: Use after inhouse softening units possible

Technical Details for Purity Quell ST 1200:

• Capacity Coffee/Espresso/Vending Machines (at a carbonate hardness of 10 °dH/bypass setting of 40 %): 13,187 L
• Comparable Capacity: 7,253 L
• Max. Operating Pressure: 6.9 bar
• Water Intake Temperature: 4 – 30 °C
• Flow at 1 bar pressure loss: max. 350 l / h
• Nominal flow: 60 l / h
• Pressure loss at nominal flow: max. 0.32 bar
• Dimensions (height / width): 550/288 mm
• Weight (dry / wet): 18/24 kg
• Connections (input/output): G 1“ | G 3/4“
• Operating position: horizontal and vertical
• Operation: Use after inhouse softening units possible

Comparable capacity according to DIN 18879-1:2007: The comparable capacity is a standardised indicator to facilitate comparison of different filters. The comparable capacity is determined under extreme conditions. Normally the usable capacity in practical operation is clearly higher than the comparable capacity and may vary greatly depending on the usage conditions.

How does Brita Filtration Technology work?
BRITA Systematic Filtration Technology decarbonises water in four steps:

1. Pre-filtration - A pre-filter retains coarse particles. Further, with its laminar water distribution ensures optimum use of the downstream filter medium.
2. Carbonate hardness reduction - Filter medium reduces carbonate hardness to prevent limescale formation.
3. Activated carbon filtration - All water – including bypass water – runs through an activated carbon filter to reduce taste impairing substances.
4. Fine filtration - Finally, a fleece retains remaining fine particles.

BRITA uses IntelliBypass technology: The unique IntelliBypass technology allows for a constant by-pass water rate irrespective of the volumetric flow. This ensures a consistently high water quality, particularly in case of low water throughput rates.
